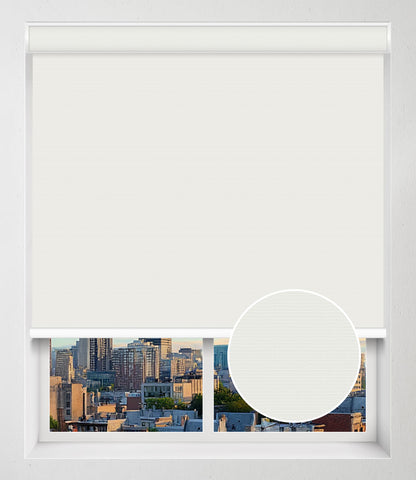

ROLLER SHADE BLACKOUT PLUS SERIES
- Minimum width: 12" (30 cm)
- Maximum width: 96" (244 cm)
- Minimum height: 12" (30 cm)
- Maximum height: 90" (228 cm)
Cordless Option “Zero Gravity”
- Minimum width: 24" (61 cm)
- Maximum width: 87" (221 cm)
- Minimum height: 24" (61 cm)
- Maximum height: 90" (228 cm)
Motorization System
- Minimum width: 24" (61 cm)
- Maximum width: 96" (244 cm)
- Minimum height: 12" (30 cm)
- Maximum height: 90" (228 cm)
Product Specification
- Custom-made product: Quebec-based company

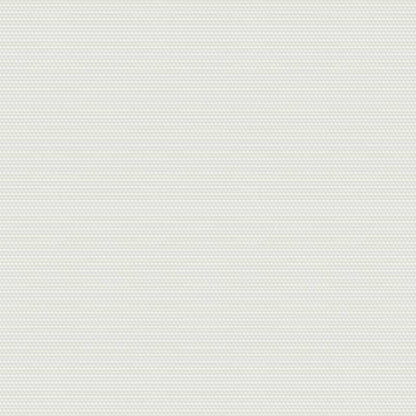

- Fabric composition: 100% Polyester
- Cleaning instructions – Easy care: Use the fabric attachment of your vacuum cleaner or a clean, dry, lint-free
cloth
- Minimum depth required for inside mount: 1 ½"
- Mounting brackets: Hardware and screws included
- Bottom rail (base): Aluminum bottom rail, color matched to cassette
- Side Light-Blocking Rails: Aluminum Side Light-Blocking Rails, color matched to cassette
Chain Option (with chain guard)
- Available lengths: 12", 18", 24", 32", 48", 72"
- Available chain colors – Plastic: White, gray, and black
WARRANTY
- Aluminum brackets and components: 10 years
- Side Light-Blocking Rails and Mounting System: 1 Year
- Fabric warranty: 3 years
- Mechanism with chain guard warranty: 10 years
- Cordless mechanism “SpringRise” and “Zero Gravity” warranty: 3 years
- Motorization system, remotes, and chargers warranty: 5 years
MECHANISM TYPES
Chain Guard
- Continuous chain with a transparent plastic chain guard and a fixed mounting system.
- To lower the shade, gently pull down on the chain. To raise the shade, use the opposite side of the chain,
pulling softly upward.
Cordless Mechanism “Zero Gravity”
- Provides smooth adjustment to the desired height, effortlessly and cord-free, for a safe and simple user
experience.
- Gently pull the bottom rail down to the desired position and release. The shade will stay in place. To adjust
again, take hold of the bottom rail and raise or lower to the new position, then release. Thanks to its balanced
system, the shade stops automatically without jerks or sudden movement.
SmartMotion Motorization
- Enjoy smooth, quiet, and effortless control of your blinds with the SmartMotion Wi-Fi motorization system for a
modern, simple, and comfortable experience.
- Built-in rechargeable battery: A rechargeable lithium battery is integrated directly inside the tube for a
clean, fully wireless installation.
- Remote included: Easily raise, lower, or stop the shade at the exact position you want with a single click.
- Easy charging: An included charger allows for quick recharging, with a full charge lasting several months
depending on usage.
- Smart-home compatible: Control your shades using voice commands, automations, or routines through compatible
smart-home systems.
- A remote control and charger are included with every SmartMotion Wi-Fi motorized blind purchased.
- A compatible hub device is required to connect the motor to your smart-home system.
Compatible with
Apple Home
- Apple TV 4K (3rd generation, 128GB)
- Apple TV 4K (2nd generation)
- HomePod (2nd generation)
- HomePod mini
Compatible with SmartThings
- SmartThings Hub V3
- SmartThings Station
Compatible with Alexa
- Echo Show 8 (3rd generation)
- Echo (4th generation)
Compatible with Google Home
- Nest Hub (2nd generation)
- Nest Hub Max
- Nest Wifi Pro
How to Use:
Use the remote to raise, lower, or stop the shade exactly where you want. Once
connected to your compatible smart-home system, you can also operate your shades using voice commands or create
automated opening and closing schedules.
INSTALLATION TYPES
Inside Mount – No deductions required
- For inside window installations, do not make deductions yourself. We will take the necessary deductions for you.
Always enter the exact window measurements when placing your order.
- Please note: all inside-mounted roller shades will have a light gap between the fabric and the window frame.
INSTALLATION – SIDE LIGHT-BLOCKING RAILS
- Standard Screw Mount: Permanent installation with screws directly through the side rails into
the inside window frame. The strongest and most stable installation method. Available for inside mount
installations only.
- Double-Sided Tape: Side rails are secured using high-performance adhesive tape, with no
drilling required. The window frame must be perfectly straight and flat to ensure proper adhesion. A curved
frame may cause the rails to lift at the top or bottom and allow light gaps to appear in the center.
- Magnetic Mount: A magnetic strip is installed on both the side rails and the window frame to
hold the rails securely in place, while still allowing them to be easily removed for access to the window
mechanism or lock. The window frame must be perfectly straight and flat. A curved frame may reduce the magnetic
holding strength and create light gaps in the center.
CASSETTE
- Aluminum components: Available in 4 colors (white, titanium, or black) with optional fabric insert
- Plastic end caps: Color coordinated with the cassette
- Fabric insert option: Allows a strip of the same fabric as the shade to be inserted into the cassette for a
seamless look
- Control options: Chain guard, cordless “Zero Gravity” and
motorization system
- Cassette dimensions:
- Half-Moon: 2 ⅞" x 3 ¼"
- Rounded Corners: 3 ⅛" x 3 ⅜"
- Zen Square: 3" x 3 ¼"
- Square: 3 ½" x 3"
IMPORTANT PRODUCT INFORMATION
Custom-Made Design:
This is a final sale product. Once the order is placed on our website, customers have 24 hours to make any changes.
After production has begun, no further modifications can be accepted.
Residual Light Disclaimer:
Blackout Plus shades with side light-blocking rails are designed to significantly reduce light leakage along the
sides in order to improve room darkening performance.
However, Blackout Plus products are not designed to provide complete darkness. A slight line of light around the
product may remain visible, particularly at the top, bottom, or near the edges. This residual light is normal, is an
inherent part of the product design, and does not constitute a defect.
